Overview

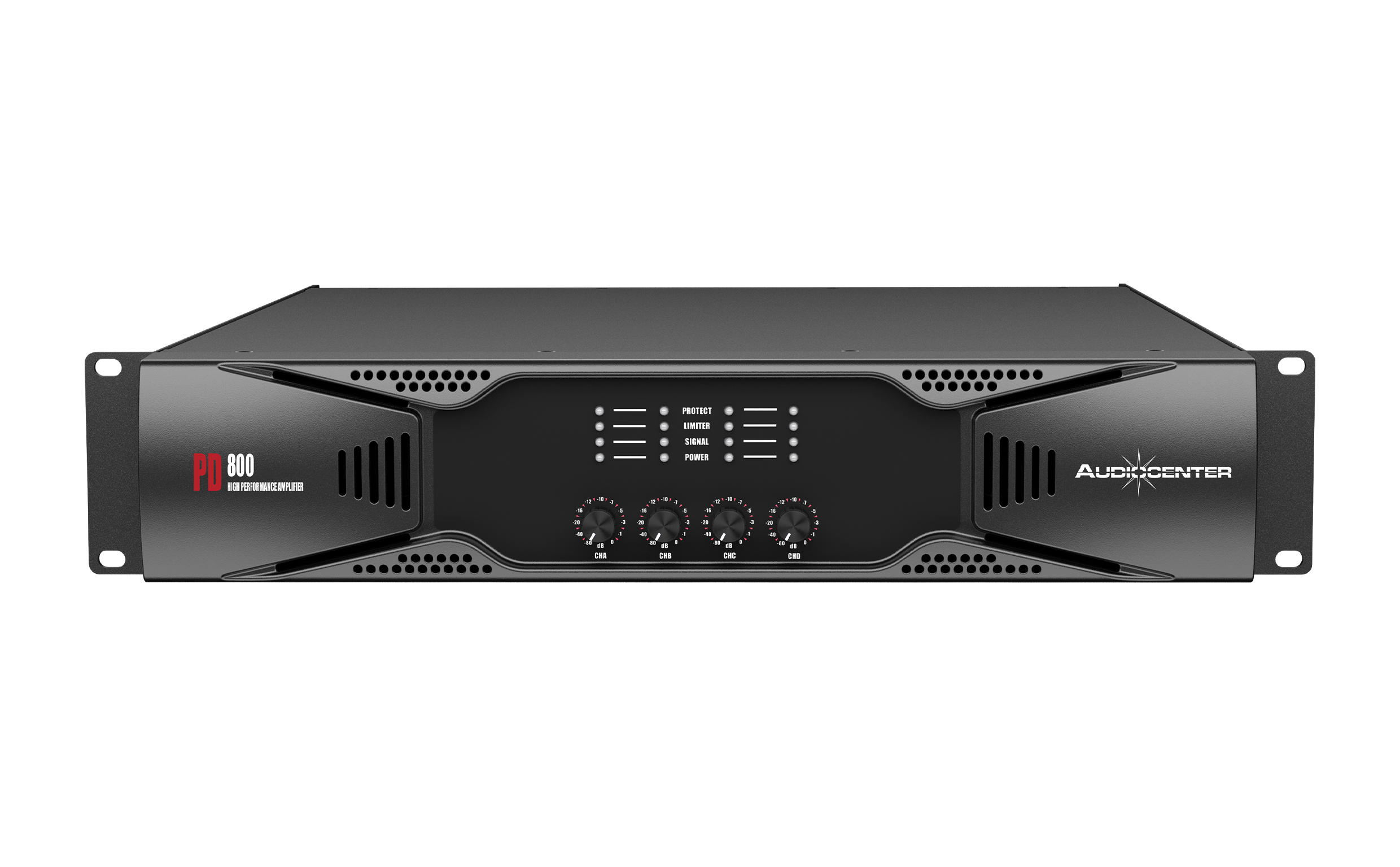

PD800 is a professional four-channel power amplifier with high technology, premium sound performance and comprehensive protection system. It is a truly high-quality professional power amplifier.
PD800 suitable for professional entertainers with limited budgets but demanding the best performance. It is widely used in bars, nightclubs, multi function halls, museums, religious places, speeches, weddings and other fixed installation and mobile performance venues.
Specifications
Output Power(1kHz, THD+N =1%) | 4x 800W @8Ω stereo 4x 1200W @4Ω stereo 4x 700W @2Ω stereo 2x 2400W @8Ω bridge 2x 1400W @4Ω bridge |
Protection | DC protection/Short circuit protection/ Smart overheat management/Overheat protection/Output overload protection / Soft startup protection/Limiter protection |
Working mode | Stereo/Parallel/Bridge |
Crossover(High Pass/Low Pass) | 120Hz,-3dB |
Input Connectors | Male XLR & Female XLR |
Output Connectors | Speakon 4Pin |
Input Impedance | ≥20kΩ(Balanced),≥10kΩ(Unbalanced) |
Maximum input voltage | ≥20dBu |
Sensitivity | 0.775V / 36dB / 32dB |
Frequency Response(1W 8Ω stereo) | 20Hz-20kHz(± 1dB) |
Crosstalk (1kHz, Rated power 8Ω A weighted) | ≥60dB |
S/N Ratio(Rated power 8Ω, A weighted) | ≥100dB |
Damping Factor (1kHz & 8Ω) | ≥400 |
Intermodulation Distortion(60Hz:7kHz=4:1,half power) | ≤0.1% |
THD+N (1kHz,8Ω half power A weighted) | ≤0.05% |
Output Circuitry | Class H |
Power Supply | 100-130V~/220-240V~(±10%,50/60Hz) |
Power Consumption(1/8 output power) | 1450W |
Rack Space | 2U |
Cooling | Back to front venting, mandatory cooling |
Dimension (W×H×D) | 483×88×457mm |
Net Weight | 26.0 kg |
