Overview

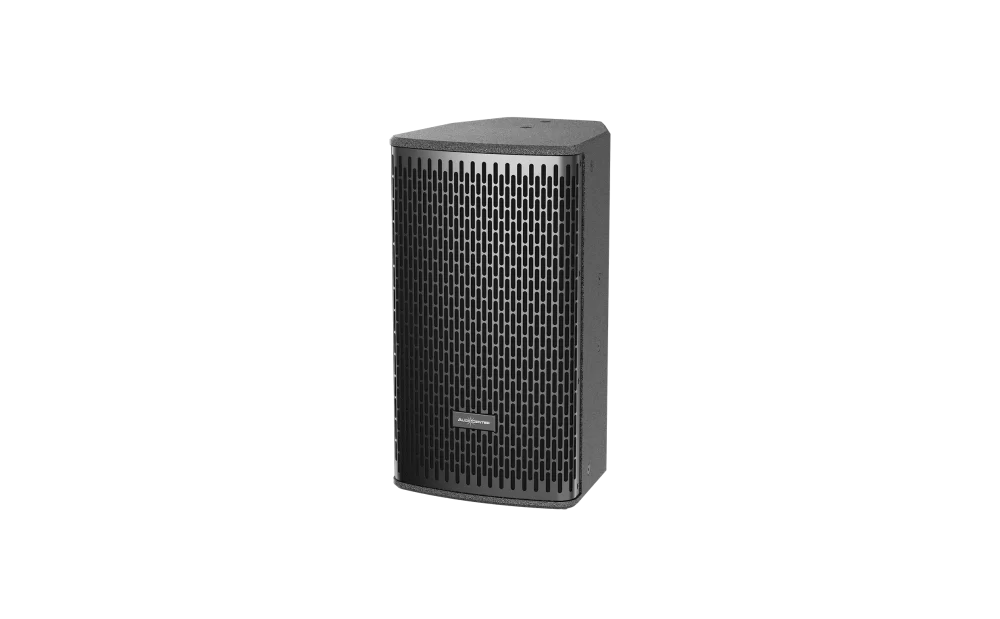

DS10 is a point-source loudspeaker with a passive crossover. Housed in a high-grade multi-ply birch enclosure, its symmetrical, compact design delivers true multi-purpose flexibility. A bottom-mounted rigging insert offers selectable 0° or 10° angles, allowing the cabinet to be flown, wall-mounted, or pole-mounted with equal ease—seamlessly adapting to any sound reinforcement scenario.
Features
- Waterproof Rating IP54
- Customized ProDriver
- DMF Composite Material Horn Design
- Smart Crossover Design
- Rotatable Horn
- Unique Driver Protection Circuit
- Durable Polyurea Coating
Specifications
Type | Passive full range loudspeaker |
Power | 250W |
Frequency Response(-10dB) | 55Hz-20kHz |
Horizontal Coverage | 90° /60° |
Vertical Coverage | 60° /90° |
Maximum Calculated SPL/1M (Continuous/Peak) | 124dB/130dB |
HF Driver | 1.75” voice coil, 1.0” exit |
LF Driver | 10” driver, 2.5” voice coil |
Impedance | 8Ω |
Crossover Mode | Passive |
Crossover point | 1.4kHz |
Input Connectors | Speakon 4Pin |
Cabinet Material | CNC made of excellent wood |
Coating | Durable Polyurea Coating |
Cabinet Color | Black is the default color. Contact Audiocenter for customization |
Grille | Iron mesh |
Handles | 1 back |
Monitor Angle | / |
Hanging Hardwares | M8 screw |
Pole Mount | Base hole Φ35mm, 0° or 10° options |
Speaker Dimension(W×H×D) | 288x526x325mm |
Carton Dimension(W×H×D) | 383x610x415mm |
Net Weight | 13.0kg |
Shipping Weight | 16.0kg |
Drawing
DS10
Passive full range loudspeaker
DS10 is a point-source loudspeaker with a passive crossover. Housed in a high-grade multi-ply birch enclosure, its symmetrical, compact design delivers true multi-purpose flexibility.
