Overview

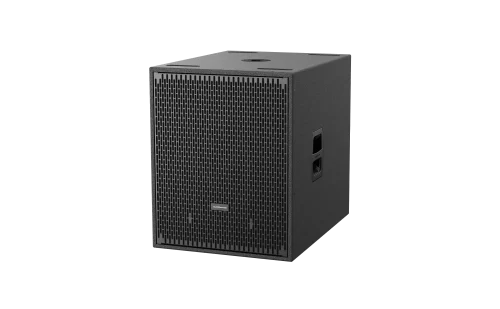

DS118S subwoofers is built from high-density, multi-ply birch plywood. Shaped with CNC-machined, interlocking panels, the cabinets can reduce resonance effectively. Extended low-frequency reach and tightly focused energy deliver deep, punchy bass with exceptional transient response.
Features
- Waterproof Rating IP54
- Customized ProDriver
- Optimized Compact Versatile Enclosure Design for Flexible Use
- Durable Polyurea Coating
- Premium Wood
- Complete Accessory System for Various Applications
Specifications
Type | Passive Subwoofer |
Power | 600W |
Frequency Response(-10dB) | 35Hz-150Hz |
Maximum Calculated SPL/1M (Continuous/Peak) | 125dB/131dB |
LF Driver | 1×18″ driver, 4.0” voice coil |
Impedance | 8Ω |
Crossover Mode | External (active) crossover |
Crossover point | / |
Input Connectors | Speakon 4Pin |
Cabinet Material | CNC made of excellent wood |
Coating | Durable Polyurea Coating |
Cabinet Color | Black is the default color. Contact Audiocenter for customization |
Grille | Iron mesh |
Handles | 2 side |
Pole Mount | M20 formed base, φ35mm |
Speaker Dimension(W×H×D) | 510×632×695mm |
Carton Dimension(W×H×D) | 596×750×780mm |
Net Weight | 37.0kg |
Shipping Weight | 40.0kg |
Drawing

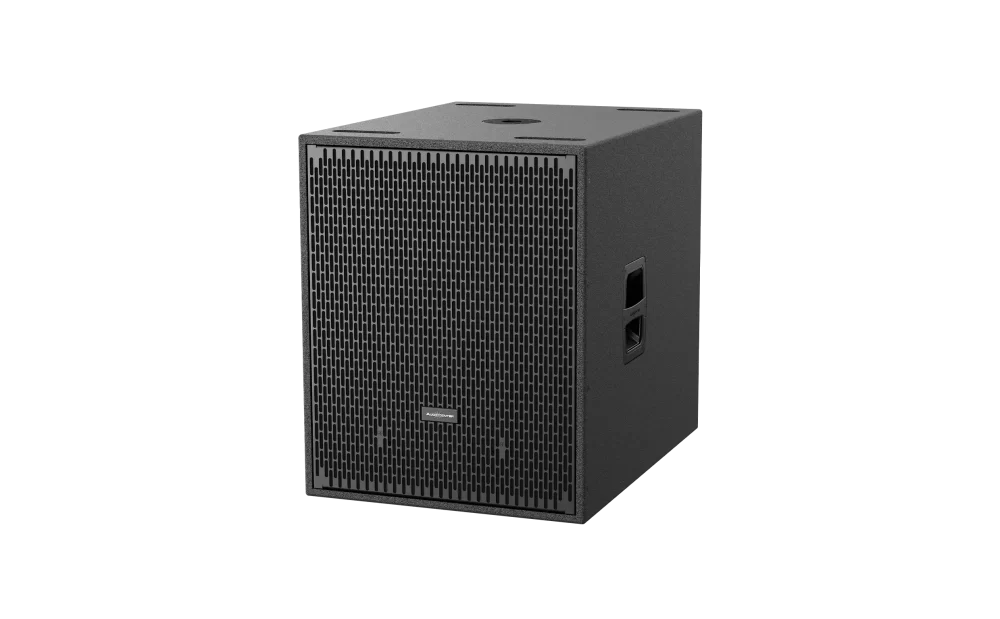

DS118S
Passive Subwoofer
DS118S subwoofers is built from high-density, multi-ply birch plywood. Shaped with CNC-machined, interlocking panels, the cabinets can reduce resonance effectively.
