K-LA-DSP Series
Active DSP-controlled Loudspeaker
K-LA-DSP Series Active DSP-controlled Line Array Loudspeaker is specifically designed for mid to mid-high level market.
K-LA-DSP can be used in Applications like Live sound for rental application for small and mid-size venues, Permanent installation in theatres, houses of worship, convention centres, Portable PA, clubs, ballrooms, live theatres and almost anywhere else that people gather to enjoy music or hear the spoken word, are within the ability of the K-LA-DSP series to respond with acoustical perfection.
K-LA-DSP system is combined in modularization, which is suitable for various performance venues.
K-LA212-DSP | K-LA210-DSP | K-LA28-DSP | K-LA218-DSP | K-LA118-DSP | |
Type | Active DSP controlled line array loudspeaker | Active DSP controlled line array loudspeaker | Active DSP controlled line array loudspeaker | Active DSP controlled Compact Subwoofer | Active DSP controlled Compact Subwoofer |
Frequency Response(-10dB) | 55Hz-20kHz | 57Hz-20kHz | 60Hz-20kHz | 32Hz-150Hz | 32Hz-150Hz |
Horizontal Coverage | 90° | 100° | 100° | / | / |
Vertical Coverage | Splay angle dependent | Splay angle dependent | Splay angle dependent | / | / |
Maximum Calculated SPL/1M (Continuous/Peak) | 129dB/135dB | 127dB/133dB | 122dB/128dB | 134dB/140dB | 131dB/137dB |
HF | Customized Neodymium driver,3” voice coil,1.4” exit | Customized driver,3”voice coil, 1.4”exit | Customized driver, 1.75”voice coil,1”exit | / | / |
LF | Customized 2×12”driver, 3” voice coil | Customized 2×10”driver, 2.5” voice coil | Customized 2×8”driver, 2” voice coil | Customized 2×18”driver, 4” voice coil | Customized 1×18”driver, 4” voice coil |
DSP | |||||
Processor | 96kHz signal sampling frequency | ||||
Presets | / | Linear, HFX, W/SUB | Linear, HFX, W/SUB | 80Hz, 100Hz, 120Hz | 80Hz, 100Hz, 120Hz |
AMPLIFIER | |||||
Amplifier Circuitry | Class D | Class D | Class D | Class D | Class D |
Power(RMS standards) | 1600W | 1600W | 1600W | 2800W | 1600W |
Peak Power | 3200W | 3200W | 3200W | 5600W | 3200W |
Frequency Response(1W 8Ω 2ch) | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) | 20Hz-20kHz(±0.5dB) |
Intermodulation Distortion (20Hz-20kHz, half power) | <0.05% | <0.05% | <0.05% | <0.05% | <0.05% |
Total Harmonic Distortion (20Hz-20kHz,Rated power 8Ω) | <0.05% | <0.05% | <0.05% | <0.05% | <0.05% |
Cooling System | Cooling with fans | Cooling with fans | Cooling with fans | Cooling with fans | Cooling with fans |
Protection | DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection | ||||
Signal Input Connectors | Female XLR | Female XLR | Female XLR | Female XLR | Female XLR |
Signal Output Connectors | Male XLR | Male XLR | Male XLR | Male XLR | Male XLR |
Power Input Connectors | Power connector | Power connector | Power connector | Power connector | Power connector |
Power Output Connectors | Power connector | Power connector | Power connector | / | Power connector |
Working Voltage | 100V-130V~ or 220V-240V~(±10%,50/60Hz) | ||||
Power consumption (1/8 output power) | 176W | 117W | 82W | 295W | 149W |
CABINET | |||||
Cabinet | Multilayer baltic birch plywood CNC made | Multilayer baltic birch plywood CNC made | Multilayer baltic birch plywood CNC made | Multilayer baltic birch plywood CNC made | CNC made of excellent wood |
Angle Adjustment | 0°, 1°, 2°, 3°, 4°, 5°, 6°,7°, 8°, 9°,10° | 0°, 1°, 2°, 3°, 4°, 6°, 8°, 10° | 0°, 2°, 4°, 6°, 8°, 10° | / | / |
Cabinet Color | Black is the default color. Contact Audiocenter for customization | ||||
Grille | Iron mesh | Iron mesh | Iron mesh | Iron mesh | Iron mesh |
Handles | 2 side,2 back | 2 side | 2 side | 8 side | 4 side |
Optional Accessories | Flightcase with 100mm wheels / Durable rain bag/ Frame for flying and ground stacking/Dolly | ||||
Speaker Dimension(W×H×D) | 899×344.5×647.5mm | 742×302×695mm | 590×236×500mm | 1080×595×760mm | 590×639×800mm |
Carton Dimension(W×H×D) | 1000×745×434mm | 840×800×390mm | 688×600×324mm | 846×1186×681mm | 724×906×675mm |
Net Weight | 59.0kg | 38.5kg | 25.0kg | 101.0kg | 63.0kg |
Shipping Weight | 63.0kg | 42.0kg | 26.0kg | 105.0kg | 69.0kg |
Technical Support and After-sales Service | Global application support team,EASE GLL files |

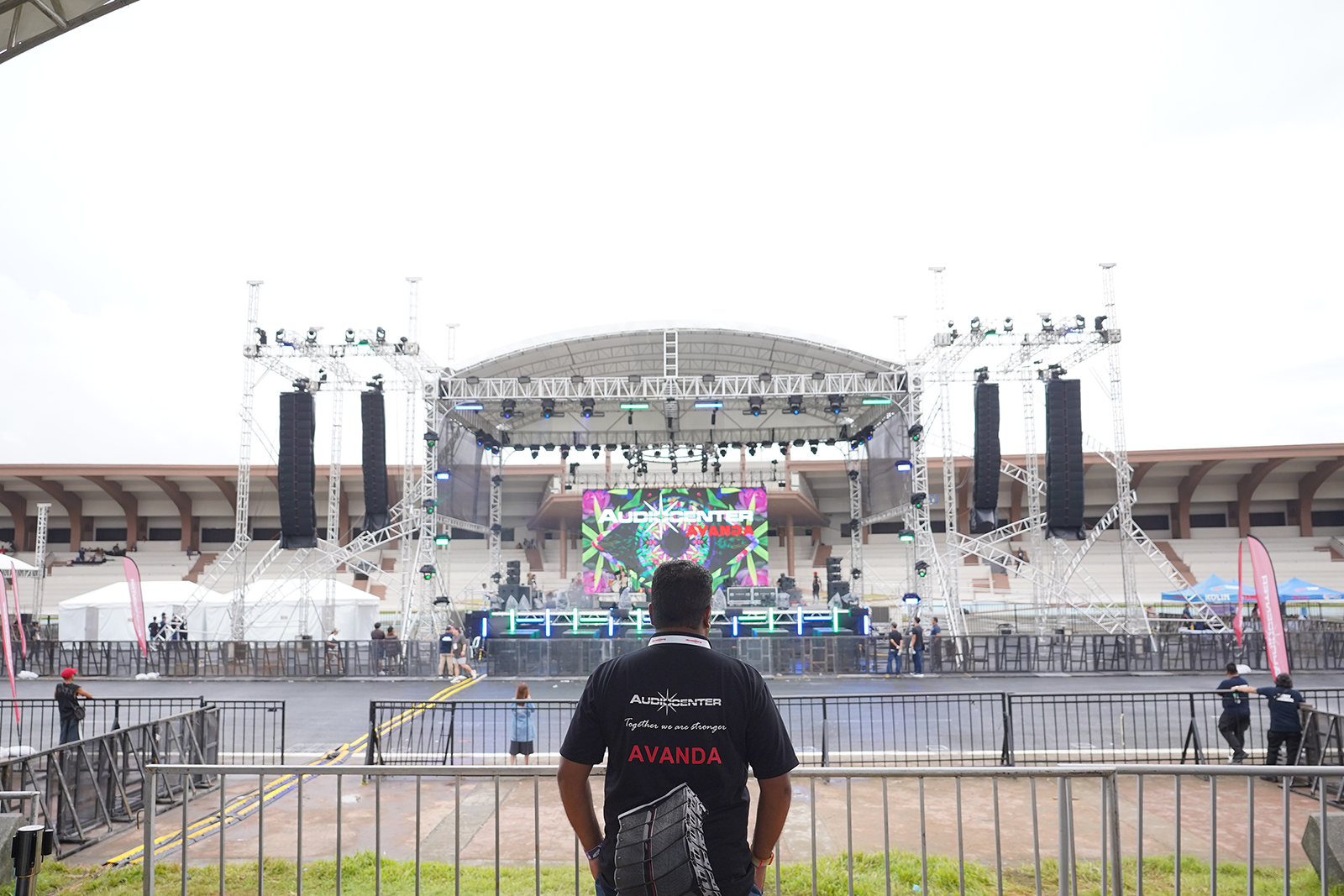

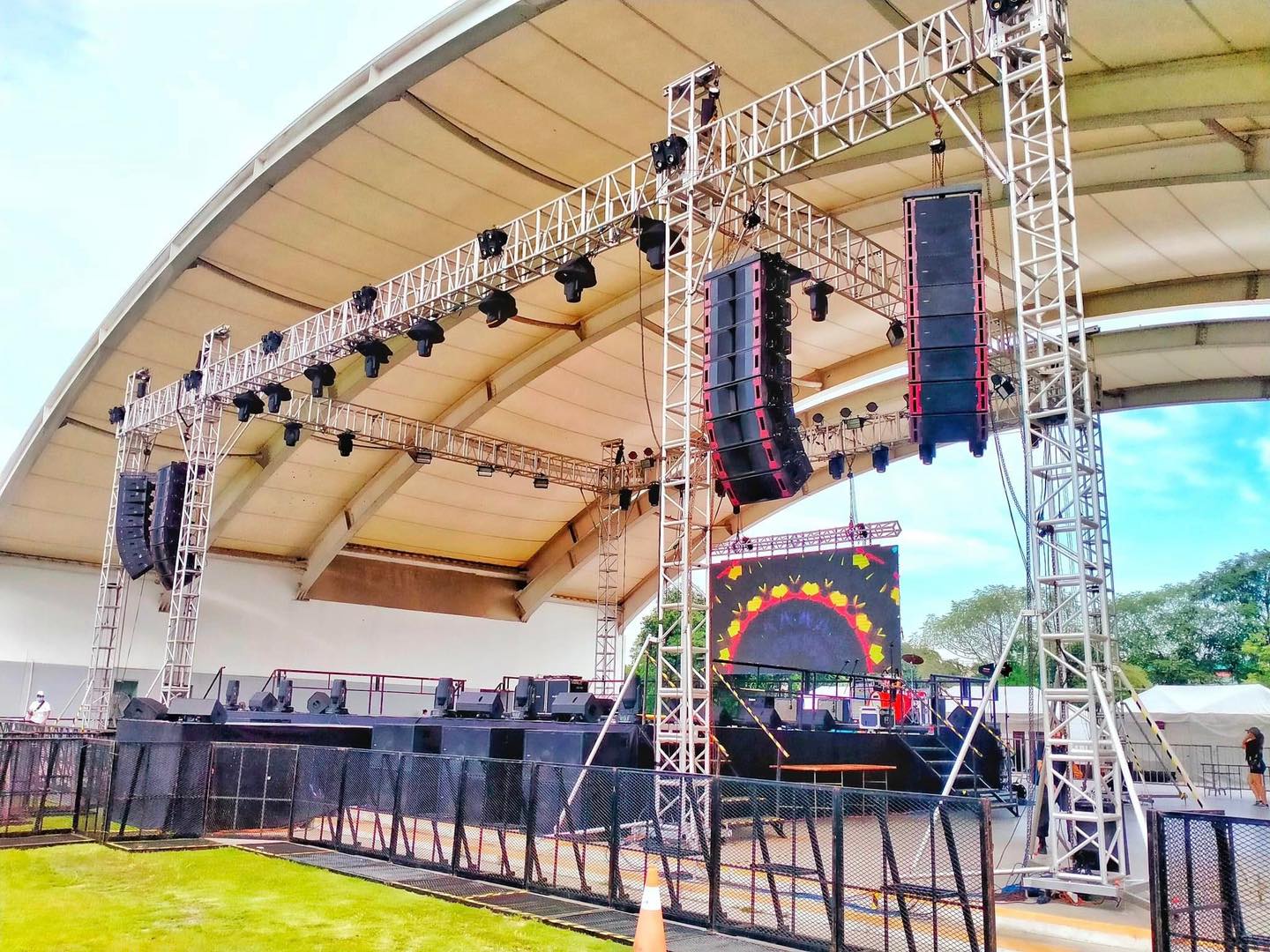

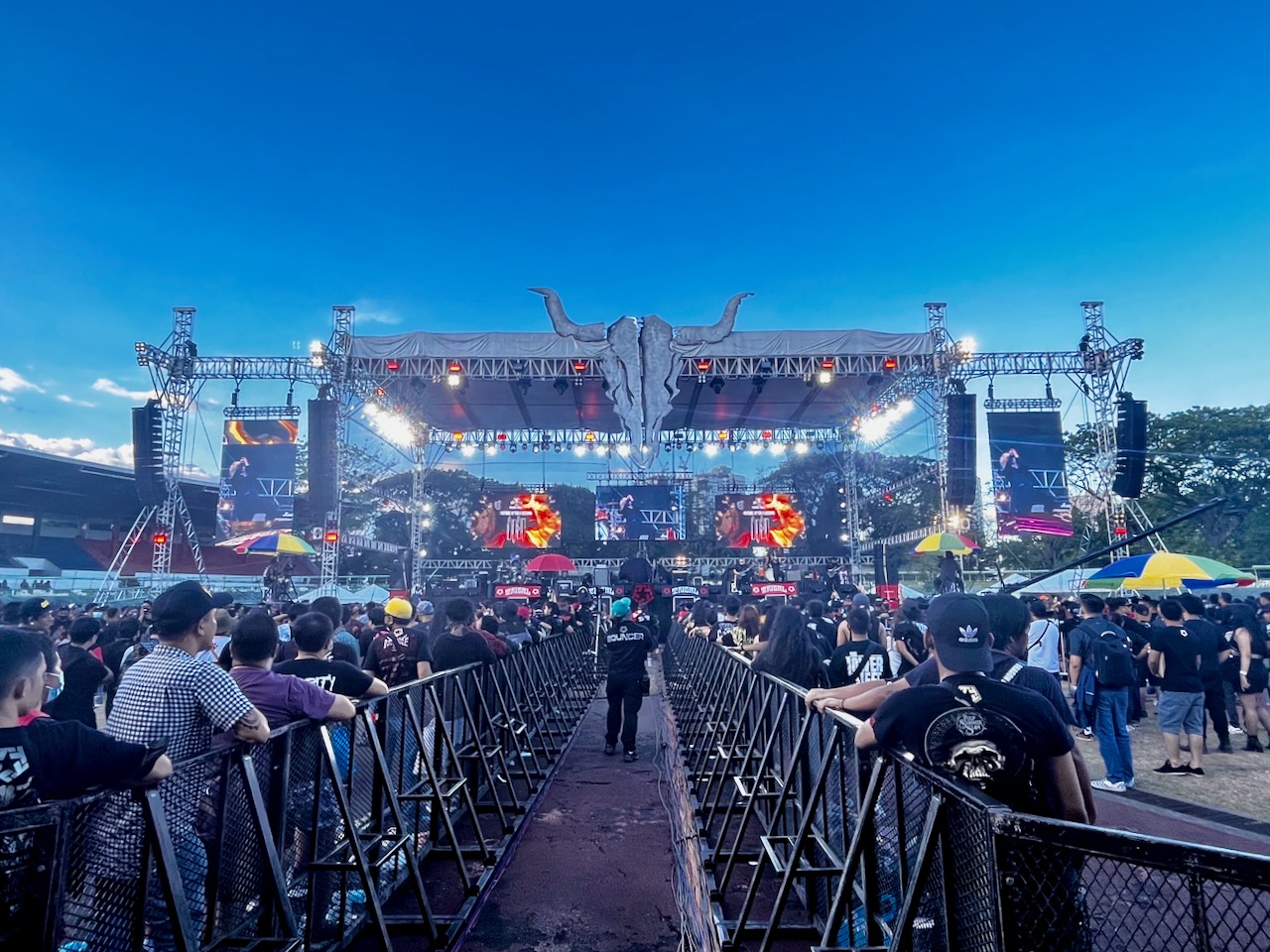

Application Scenarios
