Overview

Artist T2.4V is 2 channel Class D amplifier for commercial audio installation.

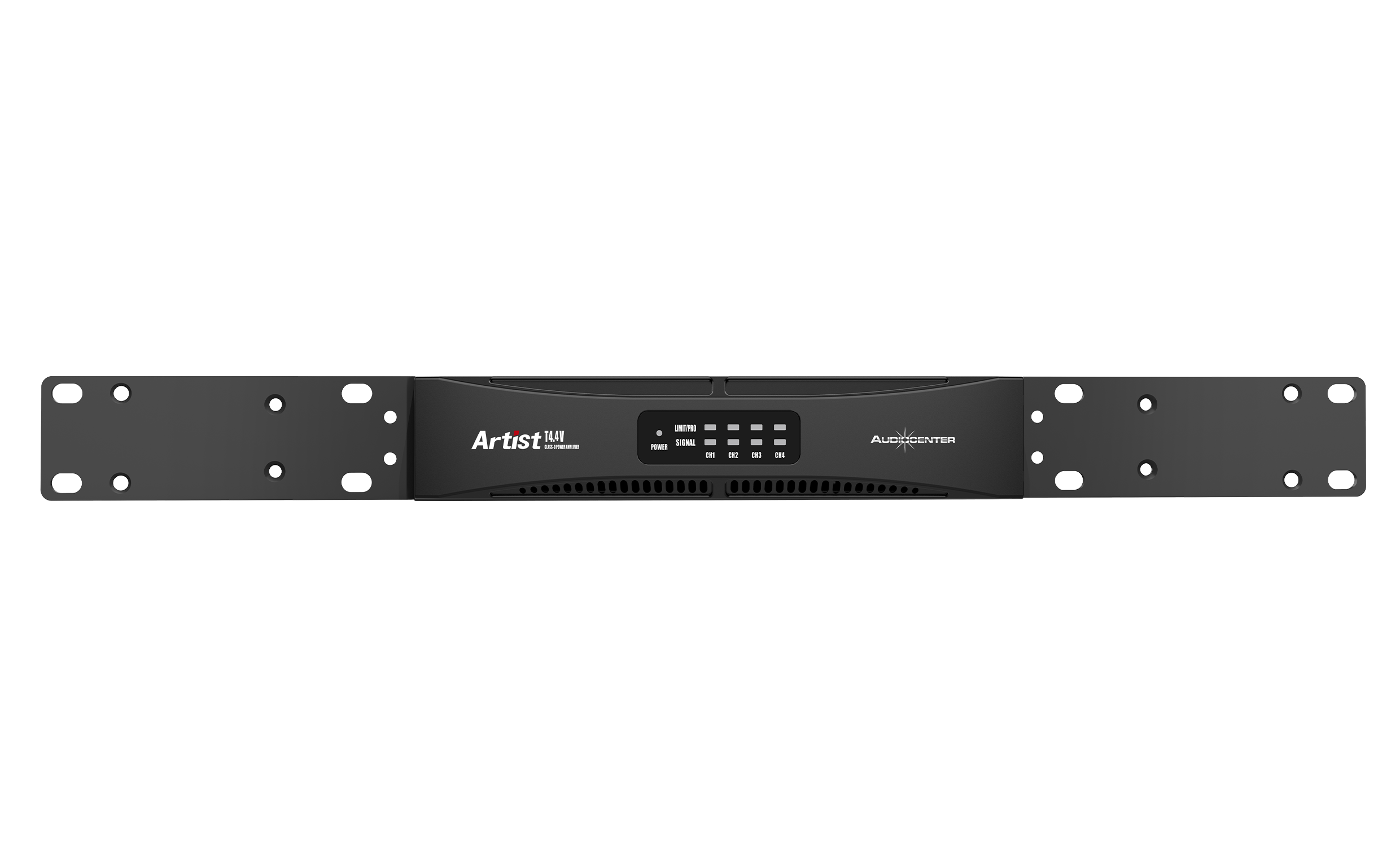

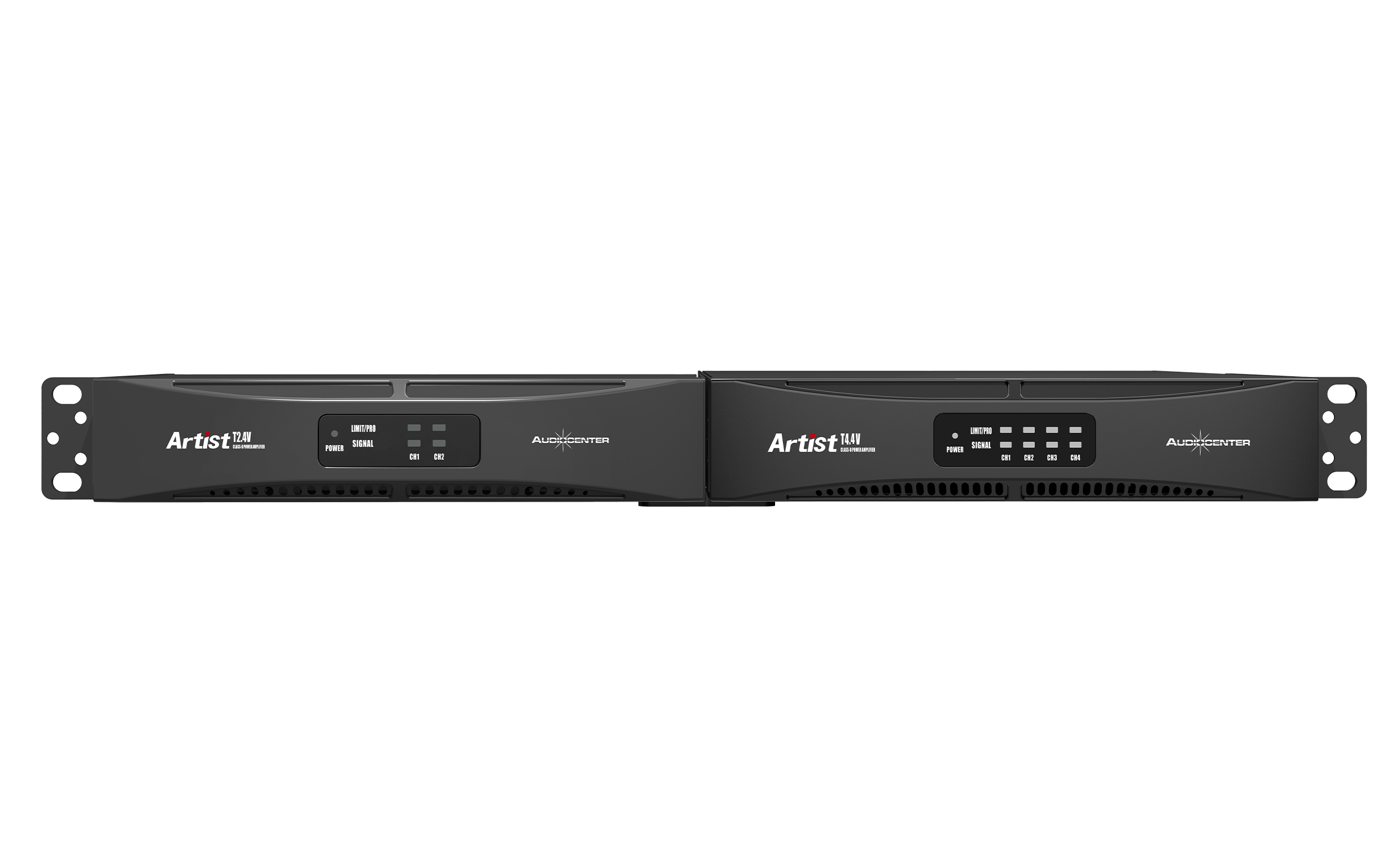

Artist T2.4V carries the renowned high reliability and outstanding sound performance delivered by AUDIOCENTER system. Both two models are with low impedance output and 70/100V outputs. T2.4V is with ultra compact 1U design and half 19″ rack space enclosure. With customized rack adapter, it allows for single installation or side-by-side (two devices) in a 19” equipment rack. Also can be mounted one table or wall.

Features

  • Class-D amplifier technology with SMPS, high efficiency
  • Built-in IC chip to control the input/output channels routing and the output
  • power accurately
  • With both low impedance output and 70/100V outputs
  • Excellent reproduction clarity and outstanding high-definition sound
  • Optimal cooling system and premium protection system makes extremely high reliability.
  • Ultra compact 1U design and half 19″ rack space enclosure. Support AUDIOCENTER BrainCore CU processor.
  • When input signal is lower than the set value for 45 mins, T2.4V/T4.4V will go into energy-saving standby mode.
  • When input signal is bigger than the set value, it will wake up automatically.

Specifications

Output Power(1kHz 20ms Burst THD+N=1%)

8Ω Stereo

2x130W

4Ω Stereo

2x260W

8Ω Bridge

1x520W

Hi-Z(70V)

1x520W

Hi-Z(100V)

1x520W

Protection System

DC protection / Short circuit protection / Smart overheat management / Overheat protection / Input overload protection /Output overload protection / Soft startup protection / Limiter protection

Working mode

Stereo,Parallel,Bridge,70V/100V

Input Connectors

1×6-pin Euroblock(3.81mm)

Output Connectors

1×4-pin Euroblock(5.08mm)

Input Impedance

≥20kΩ(Balanced),≥10kΩ(Unbalanced)

Maximum input voltage

≥15dBu

Gain

Stereo:26dB;  Bridge:32dB;  70V:34dB;  100V:37dB

Frequency response(1W 8Ω stereo)

20Hz-20kHz(±0.5dB)

Crosstalk(1kHz, Rated power 8Ω, A weighted)

≥70dB

S/N Ratio(Rated power 8Ω, A weighted)

≥100dB

Damping Factor (1kHz&8Ω)

≥200

Intermodulation Distortion(60Hz:7kHz=4:1, half power)

≤0.05%

Total Harmonic Distortion(1kHz, half power 8Ω, A weighted)

≤0.05%

Amplifier Type (Output Circuitry)

Class-D

AC Power

100-240V(±10%,50-60Hz)

Power consumption(1/8 output power)

80W

Rack space

1U design and half 19” rack space enclosure

Cooling

Back to front venting,mandatory cooling

Dimension(W×H×D)

218×44×314mm

Net Weight

2.5kg
