Overview

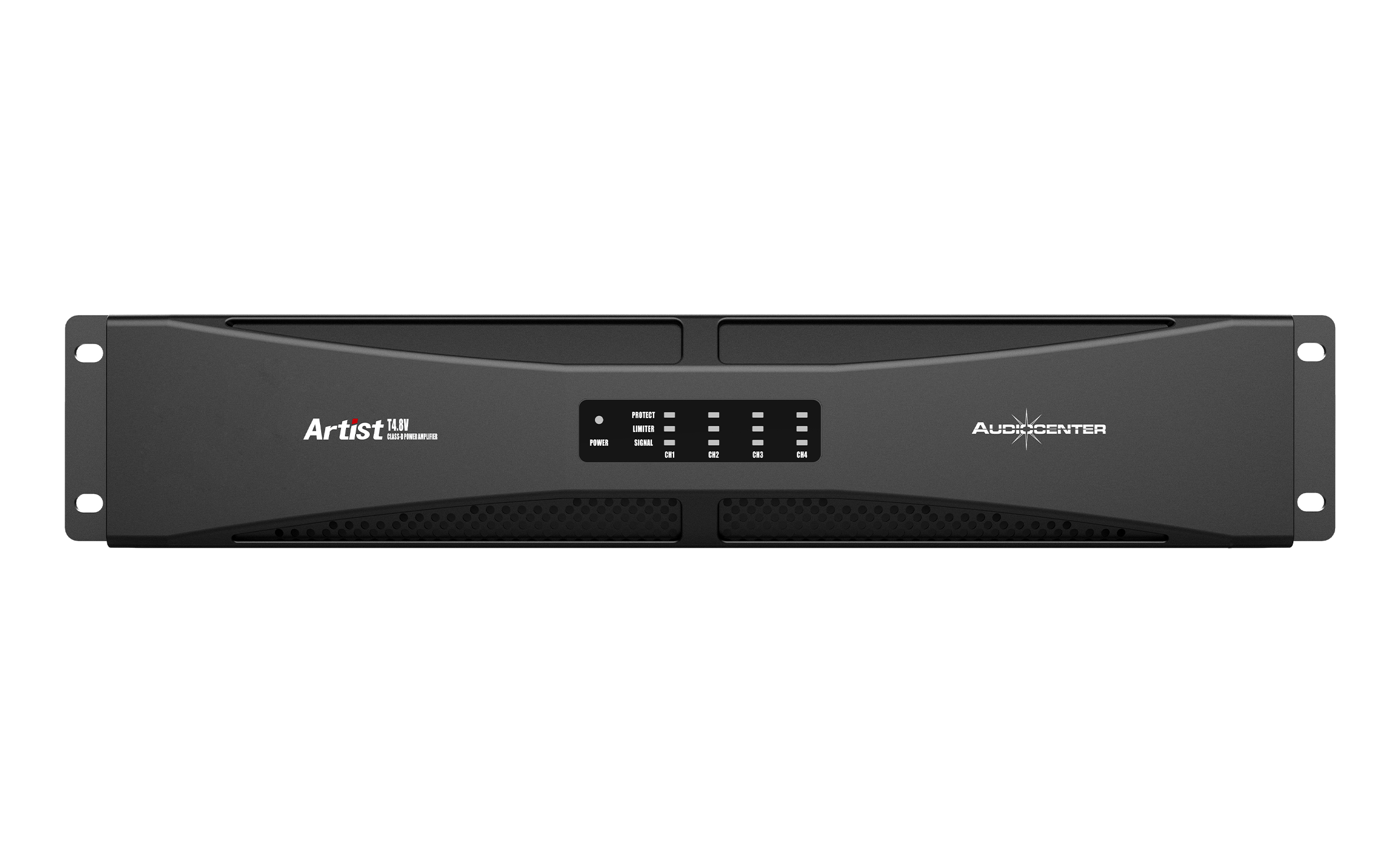

Artist T4.8V is with switch mode power supply and Class D circuit design, with high working efficiency, light weight and good reliability.

Artist T4.8V multi channel Class D amps are with low impedance output and 70/100V output. For low impedance output, output power is 400W@8ohm each channel. Each channel can work at 4ohm. For 70/100V output, it’s 100V/1000W or 70V/ 800W.

Artist T4.8V is with modular design. Every two channels share one separate power supply and amplifier system.

With elaborately selected components and state-of-the-art craftwork, Artist T4.8V have very good fidelity and high damping factor. It’s good choice for music reproduction, speech and AV system integration.

Request For Quotation

Specifications

Output Power（1kHz 20ms Burst THD+N=1%）	8Ω Stereo	4x400W
	4Ω Stereo	4x800W
	Hi-Z(70V)	2x800W
	Hi-Z(100V)	2x1000W
Protection System		DC protection / Short circuit protection / Smart overheat management / Overheat protection / Input overload protection /Output overload protection / Soft startup protection / Limiter protection
Working mode		Stereo,Parallel,70V/100V
Input Connectors		1×12-pin Euroblock（3.81mm）
Output Connectors		2×4-pin Euroblock（5.08mm）
Input Impedance		Balanced ≥20kΩ/ Unbalanced ≥10 kΩ
Maximum input voltage		≥20dBu
Gain		Stereo/Parallel：32dB； 70V/100V：38dB
Frequency response(1W 8Ω stereo)		20Hz-20kHz（±0.5dB）
Crosstalk(1kHz, Rated power 8Ω, A weighted)		≥60dB
S/N Ratio(Rated power 8Ω, A weighted)		≥108dB
Damping Factor (1kHz&8Ω)		≥500
Intermodulation Distortion(60Hz:7kHz=4:1, half power)		≤0.05%
Total Harmonic Distortion(1kHz, half power 8Ω, A weighted)		≤0.05%
Amplifier Type (Output Circuitry)		Class D
AC Power		100-130V/220-240V(±10%,50-60Hz)
Power consumption（1/8 output power）		350W
Rack space		2U
Cooling		Fan cooling, blowing from front to back
Dimension(W×H×D)		483×88×410mm
Net Weight		8.5kg
