Overview

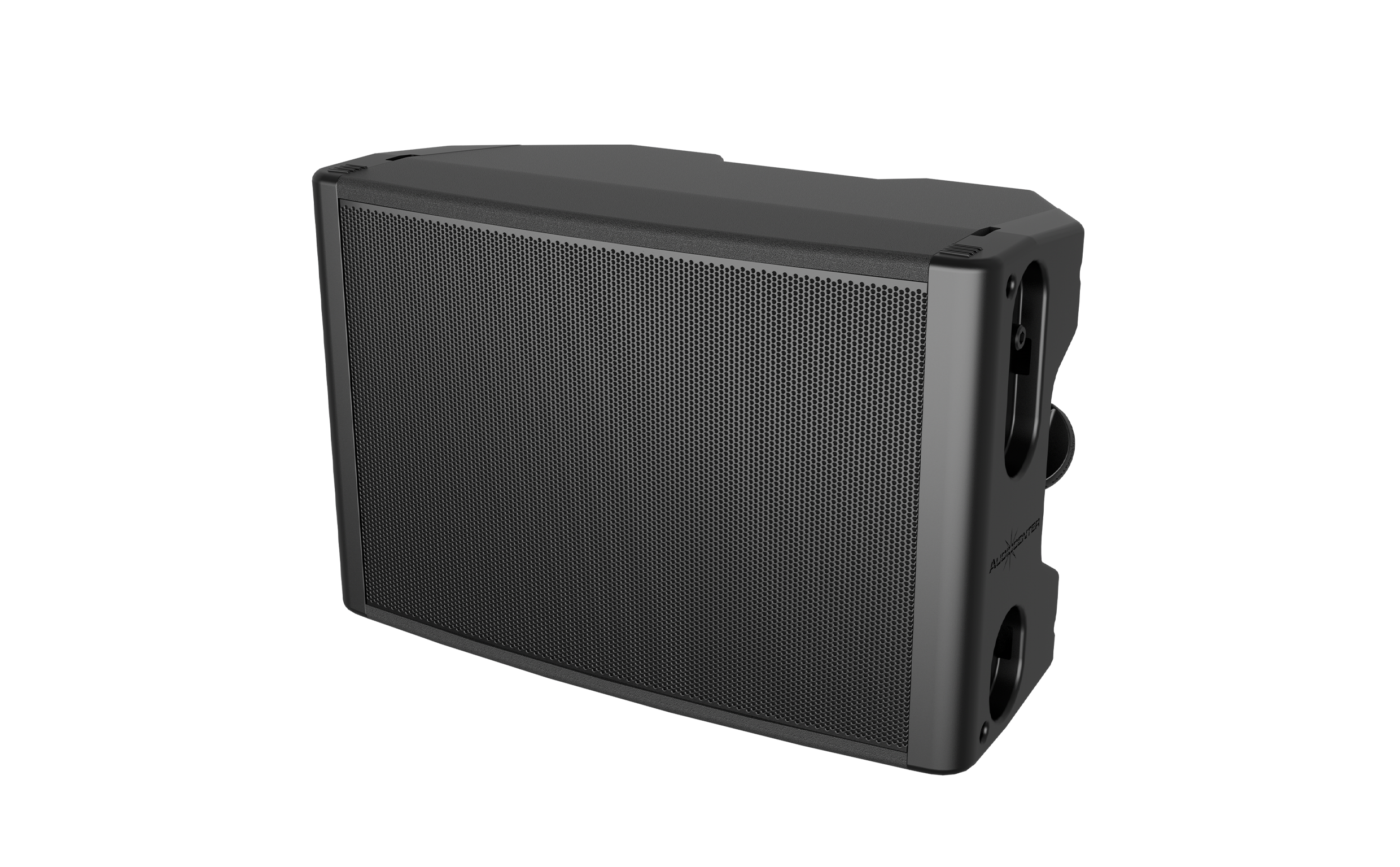

T8 adopts unique T-eye™ design, using 4 pcs dome tweeters, and the array layout is assembled in the center front of the speaker, which makes the speaker with wider frequency response, larger near-field coverage and smoother sound.
With modular design concept, T8 can be used in single pc or multiple pcs as line array to meet different demands. The angle of the fly bar can be adjusted 0 °, 2 °, 4 °, 6 °, 8 ° , 10 °, 12 ° according to different venues and different applications. Single pc can be mounted by wall mount bracket, with the mounting degree to be adjusted vertically. T8 is with molded industrial design cabinet side cover, to work as handle and hide the pins.
Features
- Waterproof Rating IP54
- Customized ProDriver
- Unique Driver Protection Circuit
- Durable Polyurea Coating
Specifications
Type | Line Array |
HF Driver | Customized 4×1”driver |
LF Driver | Customized 8” driver |
Frequency Response(-10dB) | 65Hz-20kHz |
Horizontal Coverage | 110° |
Vertical Coverage | 60° |
Impedance Power | 260W |
Maximum Calculated SPL/1M (Continuous/Peak) | 122dB/128dB |
Rated Impedance | 8Ω |
Crossover Mode | Passive Crossover |
Input Connectors | Speakon 4Pin |
Cabinet Material | Wood+Plastic |
Adjusted Angles | 0°，2°，4°，6°，8°，10°，12° |
Coating | Durable Polyurea Coating |
Cabinet Color | Black is the default color. Contact Audiocenter for customization |
Grille | Iron mesh |
Included Accessories | Wall-mount Bracket |
Optional Accessories | Pole Mount Bracket，Wall Mounted Bracket，Hanging Frame |
Speaker Dimension(W×H×D) | 418x277x261mm |
Carton Dimension(W×H×D) | 490x340x350mm |
Net Weight | 8.0kg |
Shipping Weight | 8.5kg |
T8
Line Array
T8 adopts unique T-eye™ design, using 4 pcs dome tweeters, and the array layout is assembled in the center front of the speaker, which makes the speaker with wider frequency response, larger near-field coverage and smoother sound.
