Overview

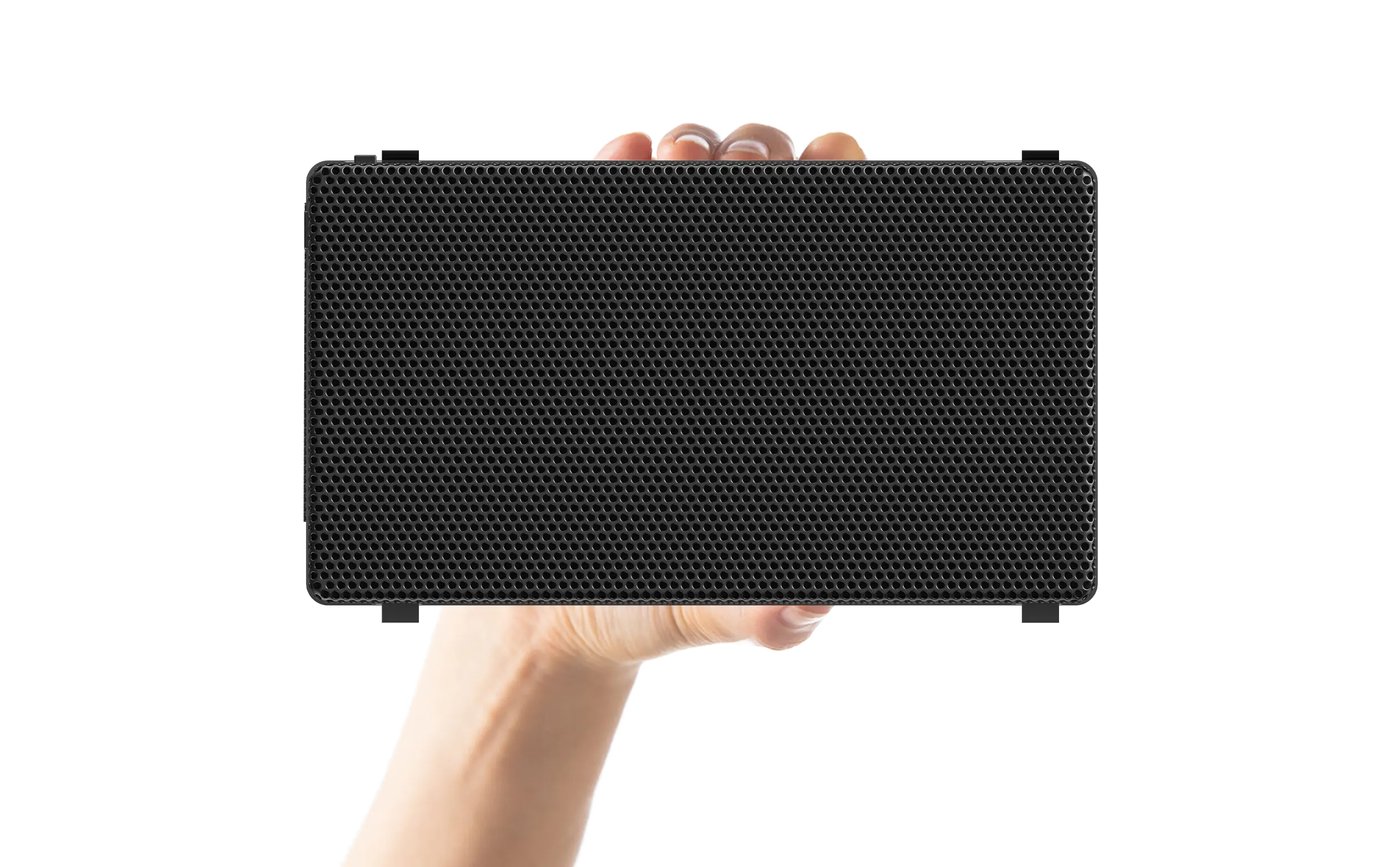

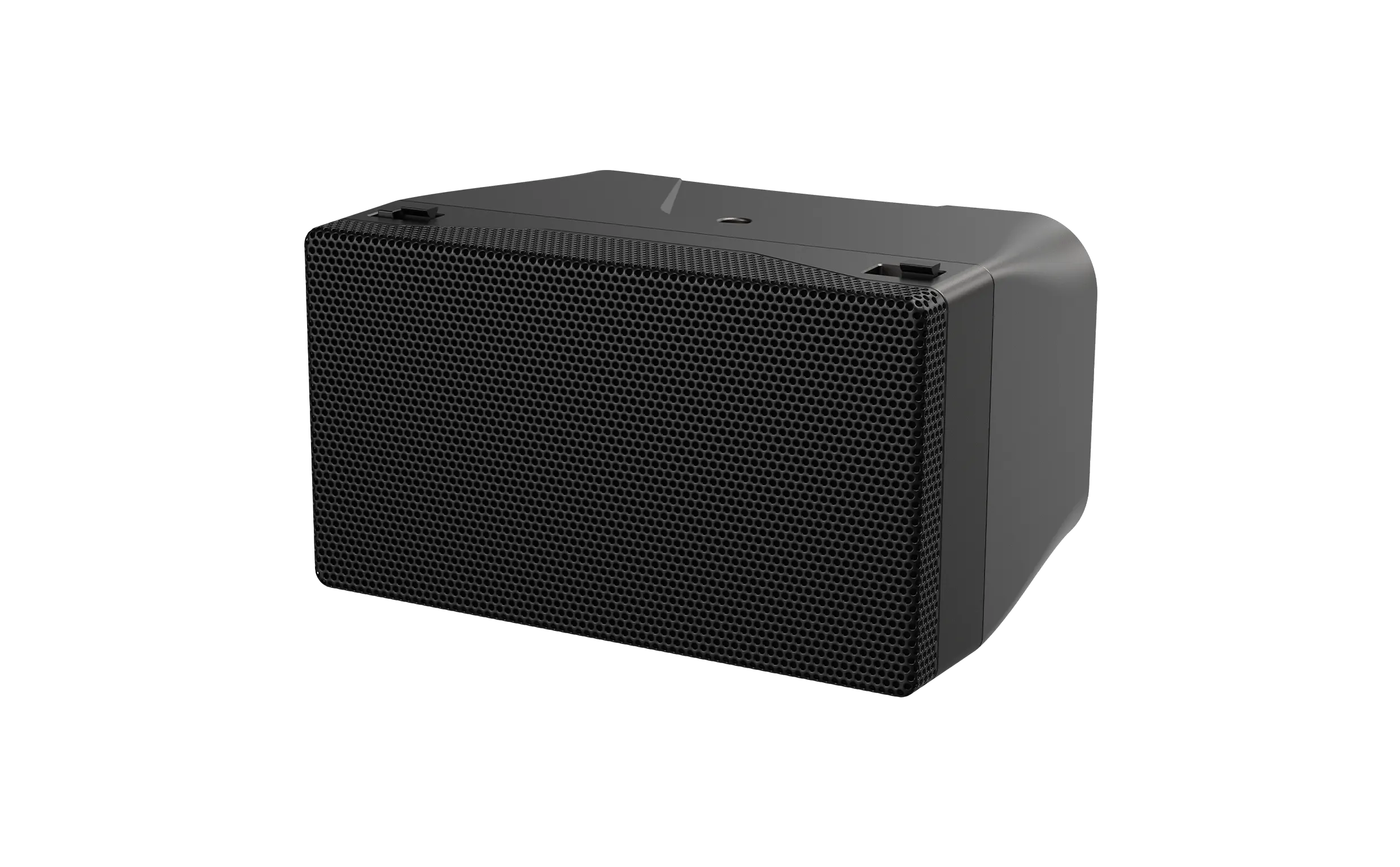

Butterfly 4pro consists of 1 pc 4” LF driver and 2 pcs soft dome tweeters. The HF adopts a unique T-eyeTM design, and the array layout is assembled in the center front of the speaker. The speaker has a wider frequency response and larger near-field coverage, and the sound is more delicate.

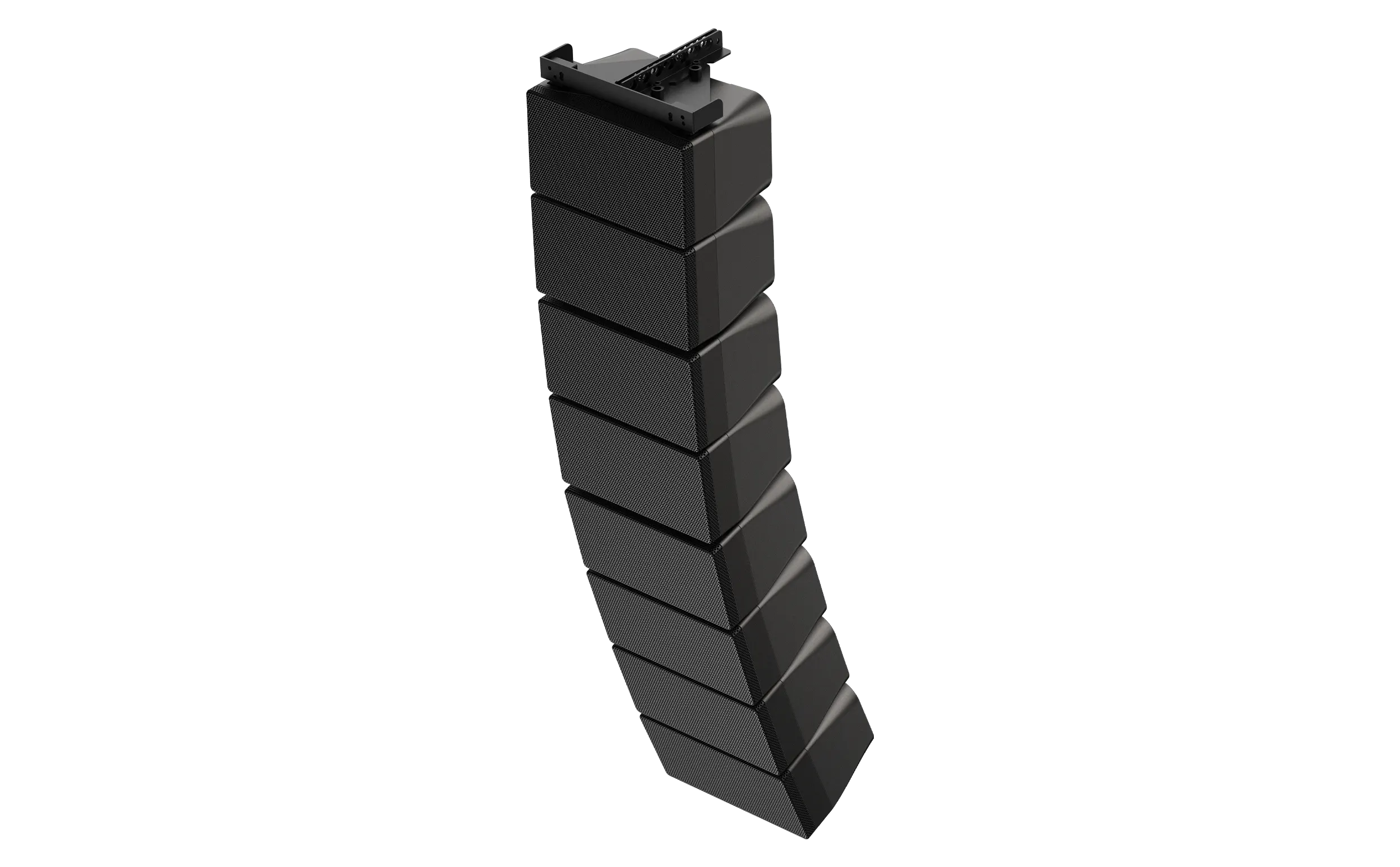

Butterfly 4pro adopts a modular design concept, which can be used individually or in combination with multiple speakers. It has good scalability and can flexibly adapt to various environments and occasions.
Features
- Customized ProDriver
- Smart Crossover Design
- Durable ABS cabinet structure
- Unique Driver Protection Circuit
- T-EYETM Treble Design
- Extremely Simple Installation
- Flexible and Multiple Applications
Specifications
Type | Multipurpose Micro-Line Array Loudspeaker |
Power | 60W |
Frequency Response(-10dB) | 100Hz-22kHz |
Horizontal Coverage | 100° |
Vertical Coverage | 20° |
Maximum Calculated SPL/1M (Continuous/Peak) | 111dB/117dB |
HF Driver | 2×1” driver |
LF Driver | 4” driver,1” voice coil |
Impedance | 16Ω(+1,-1) |
Crossover Mode | Passive Crossover |
Input Connectors | Speakon 4pin |
Cabinet Material | ABS plastic material |
Angle adjustment | 0°,4° |
Cabinet Color | Metal gray |
Grille | Aluminium mesh |
Mesh Color | Metal gray is standard and default color, Contact Audiocenter for customization |

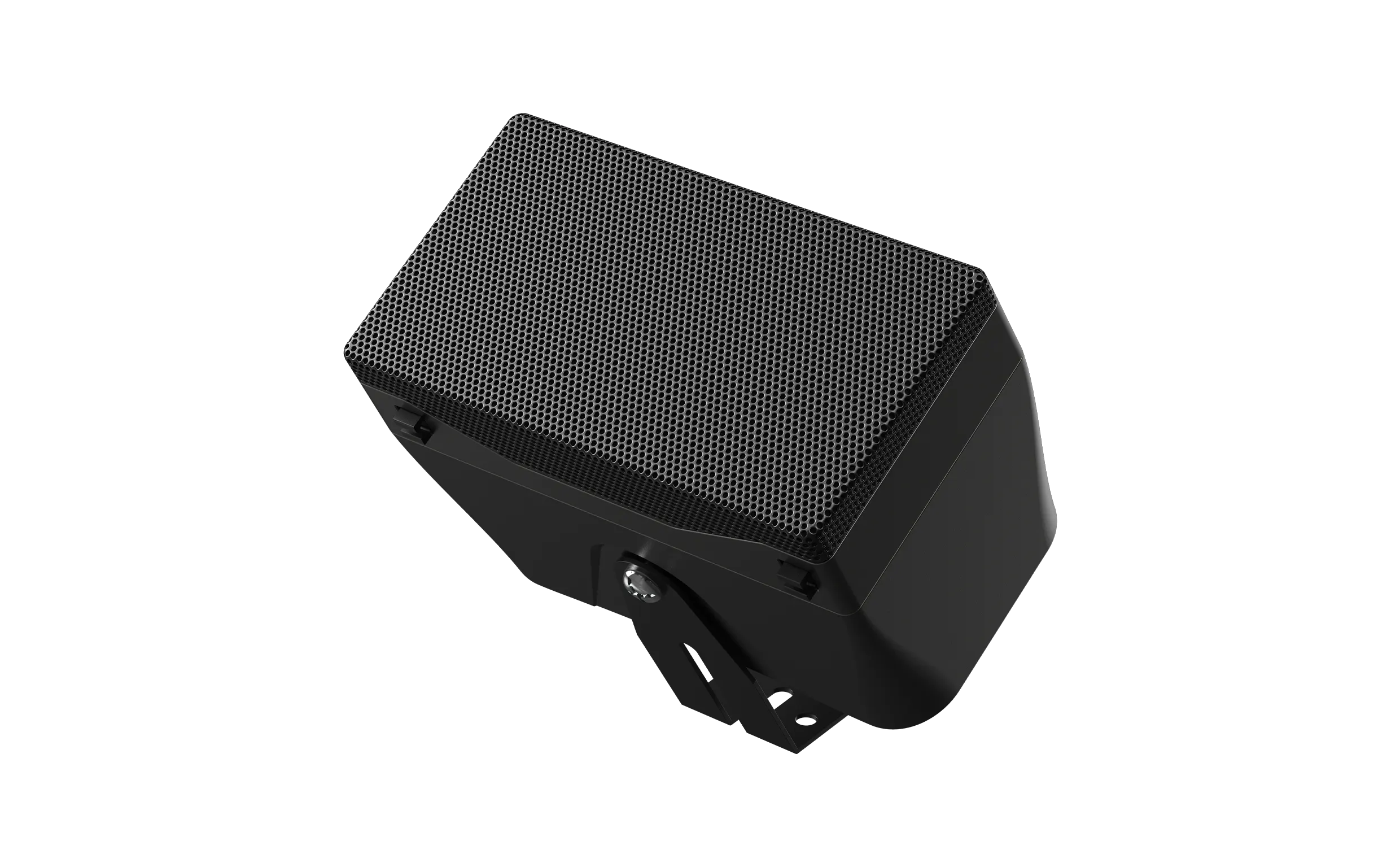

Pole Mount | M10 |
Temperature range | -20℃~+50℃ |
Speaker Dimensions(W×H×D) | 215×122×165mm |
Carton Dimensions(W×H×D) | 253×160×247mm |
Net Weight | 2.3kg |
Shipping Weight | 2.7kg |
Technical Support and After-sales Service | Global application support team,EASE GLL Files |
Drawing
Butterfly 4pro
Line Array
Butterfly 4pro consists of 1 pc 4” LF driver and 2 pcs soft dome tweeters. The HF adopts a unique T-eyeTM design, and the array layout is assembled in the center front of the speaker.
