Overview
K-LA218 subwoofer can be used in touring performance and fixed installation such as concert , stadium and rental, etc.
K-LA218 is built with 2 customized 18” LF drivers with 4” voice coil, D.F.L. (Dual Frequency Loading) technology and advanced cooling system, which ensures very low power compression and high SPL, increases response speed and decreases inertial offset at the most.
K-LA218 can match all Audiocenter full range speakers, extend the band width of frequency response and provide powerful, deep and dynamic bass.
Tongue and groove CNC made cabinet with Multilayer baltic birch plywood.
Features
- Powerful, deep and dynamic bass
- Customized 18”LF drivers with 4”voice coil
- D.F.L.(Dual Frequency Loading) technology
- 32Hz extremely low LF extension
- A perfect match for all Audiocenter full range
- speakers, extend the band width of frequency response
- Rock solid humidity free CNC cabinet made of Multilayer baltic birch plywood without resonance
Specifications
Type | Passive Compact Subwoofer |
Rated Power (AES standard) | 1600W |
Frequency Response(-10dB) | 32Hz-150Hz |
Maximum Calculated SPL/1M (Continuous/Peak) | 134dB/140dB |
LF Driver | Customized 2×18” driver, 4.0” voice coil |
Rated Impedance | 4Ω |
Crossover Mode | Active |
Connectors | Speakon 4Pin |
Cabinet | |
Cabinet Material | Multilayer baltic birch plywood CNC made |
Cabinet Color | Black is the default color. Contact Audiocenter for customization |
Grille | Iron mesh |
Handles | 8 side |
Pole Mount | Base hole Φ35mm |
Optional Accessories | Flightcase with 100mm wheels / Durable rain bag / Flying frame |
Speaker Dimension (W×H×D) | 1080×595×760mm |
Carton Dimensions(W×H×D) | 846×1186×681mm |
Net Weight | 85.0kg |
Shipping Weight | 89.0kg |
Drawing

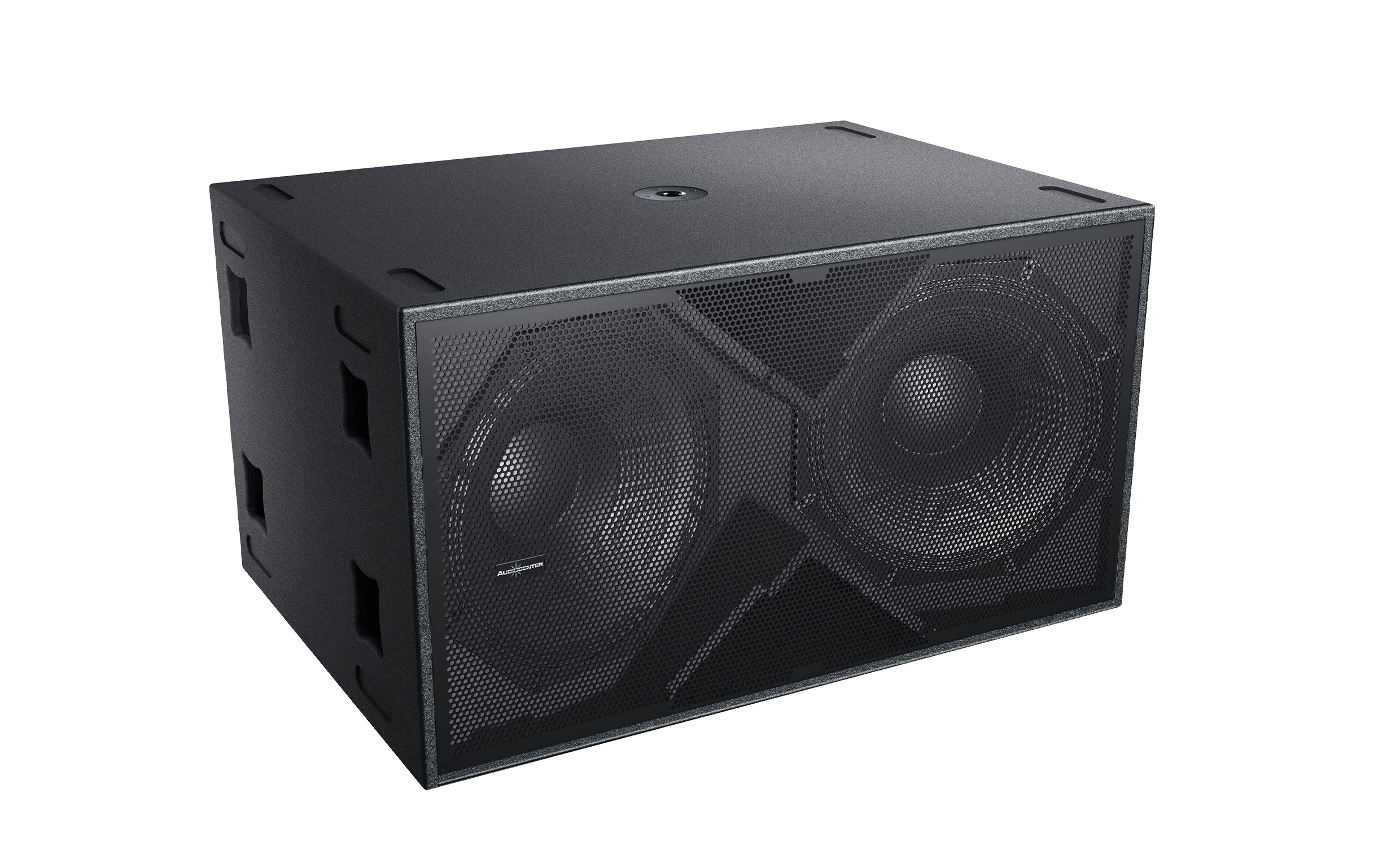

K-LA218
Passive Dual 18” subwoofer
K-LA218 subwoofer can be used in touring performance and fixed installation such as concert , stadium and rental, etc.
