GT Passive Series
Passive Full Range Speaker
You are here:
GT PASSIVE Series
Passive Full Range Speaker
The GT Series is a professional passive speaker designed for mobile and fixed installations both as main sound reinforcement system or stage monitor.
GT Series has been conceived as a multipurpose series suitable for multi-function halls, multimedia conference rooms, lecture halls, museums, exhibition centers, houses of worship, theaters and any venue where sound quality is paramount.
- Unique and proprietary original technology and patents
Adhering to the principle of standing on the shoulders of giants, Audiocenter integrates top European R&D teams and top European speaker and electronic suppliers. - To create stylish and compact loudspeaker designs with expert craftsmanship, high sound pressure levels, and versatile applications
- Serving the largest customer base with the best products
- Allow more people to enjoy the latest and most advanced technology
- Durable and suited to all weather conditions and scenarios
| GT515P | GT512P | GT510P | GT508P |
Type | Passive full range loudspeaker | Passive full range loudspeaker | Passive full range loudspeaker | Passive full range loudspeaker |
Rated power(AES standards) | 400W | 400W | 250W | 150W |
Program power(AES standards) | 800W | 800W | 500W | 300W |
Peak power(AES standards) | 1600W | 1600W | 1000W | 600W |
Frequency Response (-10dB) | 40Hz-20kHz | 42Hz-20kHz | 55Hz-20kHz | 65Hz-20kHz |
Horizontal Coverage | 90°/60° | 90°/60° | 90°/60° | 90°/60° |
Vertical Coverage | 60°/90° | 60°/90° | 60°/90° | 60°/90° |
Maximum Calculated SPL/1M (Continuous/Peak) | 130dB/136dB | 128dB/134dB | 124dB/130dB | 119dB/125dB |
HF Driver | Customized driver, 1.75” voice coil and 1.0”exit | Customized driver, 1.75” voice coil and 1.0”exit | Customized driver, 1.75” voice coil and 1.0”exit | Customized driver, 1.75” voice coil and 1.0”exit |
LF Driver | Customized 15” driver, 3” voice coil | Customized 12” driver, 3” voice coil | Customized 10” driver, 2.5” voice coil | Customized 8” driver, 2” voice coil |
Impedance | 8Ω | 8Ω | 8Ω | 8Ω |
Crossover Mode | Passive Crossover | Passive Crossover | Passive Crossover | Passive Crossover |
Crossover Point | 1.2kHz | 1.2kHz | 1.4kHz | 1.5kHz |
Input Connectors | Speakon 4Pin | Speakon 4Pin | Speakon 4Pin | Speakon 4Pin |
CABINET |
|
|
|
|
Cabinet Material | CNC machined plywood | CNC machined plywood | CNC machined plywood | CNC machined plywood |
Coating | Durable Polyurea Coating | Durable Polyurea Coating | Durable Polyurea Coating | Durable Polyurea Coating |
Cabinet Color | Black is the default color. Contact Audiocenter for customization | |||
Grille | Iron mesh | Iron mesh | Iron mesh | Iron mesh |
Handles | 2 side | 2 side | 1 top | 1 top |
Monitor Angle | Symmetrical 45° monitoring Angle | Symmetrical 45° monitoring Angle | / | / |
Hanging Hardwares | M8 screw | M8 screw | M8 screw | M8 screw |
Pole Mount | 1 base hole Φsss35mm on the bottom, 0° or 10° options | |||
Optional accessories | Horizontal U bracket / Cover / Pole bar /Flightcase | |||
Speaker Dimension (W×H×D) | 421×696×416mm | 355×599×349mm | 288×526×325mm | 245×447×320mm |
Carton Dimension (W×H×D) | 516×785×516mm | 446×688×446mm | 383×610×415mm | 336×531×410mm |
Net Weight | 22.0kg | 19.0kg | 13.0kg | 11.0kg |
Shipping Weight | 26.0 kg | 22.0 kg | 16.0 kg | 13.0 kg |

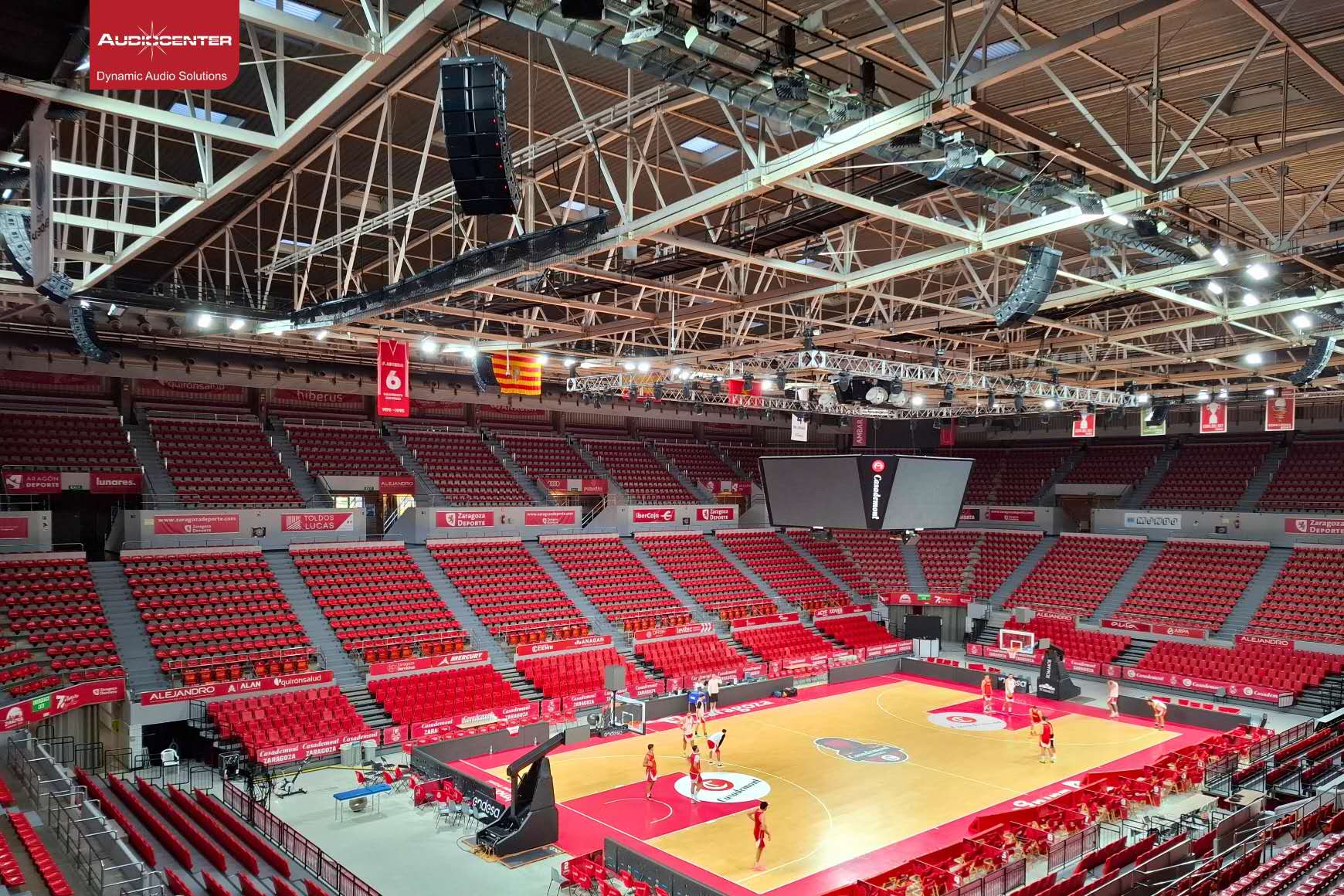

Application Scenarios
Why Choose Us
Integration Of Global R&D Technical Resources
1. Strong R&D team with 11 top electroacoustic engineers and audio engineers from Germany, Sweden, Denmark, Italy, Spain and America.
2. More than 30 R&D engineers in Audiocenter HQ.
3. Develop close cooperation with audio R&D institutions such as Humboldt–Universitat zu Berlin, Universitat Politecnica de Valencia, the Chinese Academy of Sciences.
Technical Innovation Qualification & Product Certifications
Integration of Application Technology Resources
1. International marketing and technical support team with local experienced professionals to achieve barrier-free communication with global users. Senior technical support engineers are located all over the world.
2. Technical service center including a solution design team, application engineers and system engineers to provide technical services to customers around the world.
3. Full technical services, including pre-sales technical support, system design, installation and commissioning, after-sales service, technical training, etc.
