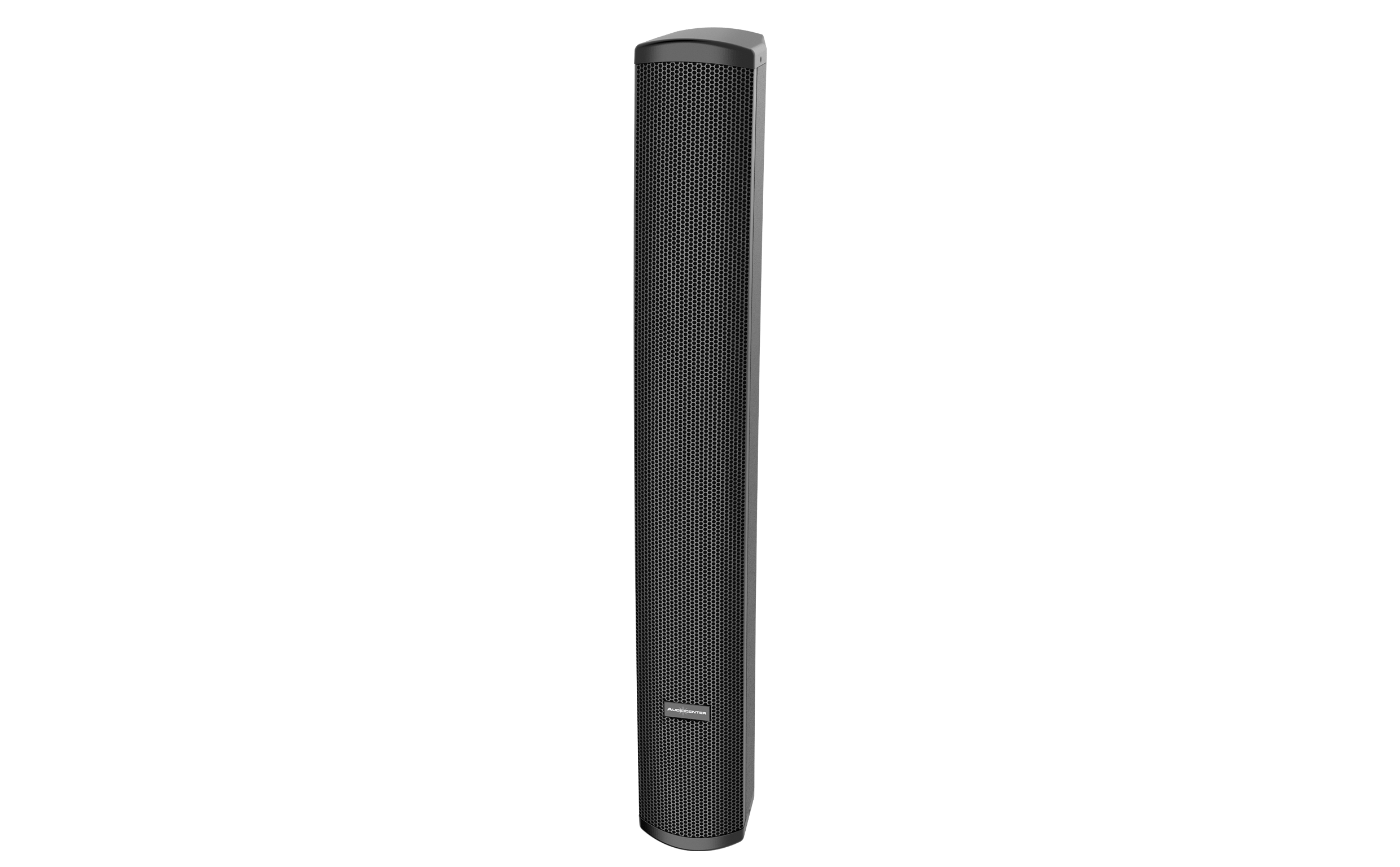

Artist T83 passive full-range line array column speaker is built with 8 pcs 3’’ neodymium drivers. The drivers are arranged by elaborate calculation and PhycalTM physical calibration technology, which makes Artist T83 with wider near-field horizontal and vertical coverage than the normal column speaker, to meet various demands.
Artist T83 is equipped with wall mount brackets to adjust the angle horizontally and vertically. Artist T83 is inbuilt with voltage and impedance output switch tap, which makes Artist T83 with more applications.
Specifications
|
Type |
Full-range Line Array Column Speaker |
|
Driver |
Full frequency 8×3” |
|
Frequency Response(-10dB) |
110Hz-20kHz |
|
Horizontal Coverage |
120° |
|
Vertical Coverage |
40° |
|
Impedance Power |
320W |
|
70V Power |
120W/60W/30W/15W |
|
100V Power |
120W/60W/30W |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
124dB/130dB |
|
Rated Impedance |
4Ω |
|
Crossover Mode |
/ |
|
Input Connectors |
Euroblock |
|
Cabinet Material |
Wood+Plastic |
|
Coating |
Durable Polyurea Coating |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Grille |
Iron mesh |
|
Included Accessories |
Wall-mount Bracket |
|
Optional Accessories |
/ |
|
Speaker Dimension(W×H×D) |
121x918x191mm |
|
Carton Dimension(W×H×D) |
1069x185x445mm |
|
Net Weight |
7.0kg |
|
Shipping Weight |
17.0kg(2pcs) |
Frequency Response Curve
Artist T83
Full-range line array column speaker
Artist T83 passive full-range line array column speaker is built with 8 pcs 3’’ neodymium drivers.
